2m C95400 Alloy Round Bar , ASTM B280 Aluminum Bronze Bar Stock

Shandong Modern International Trade Co., Ltd.

2m C95400 Alloy Round Bar , ASTM B280 Aluminum Bronze Bar Stock

Brand Name : Modern

Model Number : C44300,C44400,C44500, C60800,C63020,C65500,C68700,etc.

Certification : BV

Place of Origin : Shandong, China

MOQ : 100kg

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 Tons Per Months

Delivery Time : 3-5 working days if this goods is stock goods.

Packaging Details : Export standard package: bundled wooden box, suit for all kinds of transport,or be required.

Item : bronze bar

Application : Industry,Construction

Cu (Min) : 59%

Grade : Bronze

Alloy or not : Is Alloy

Standard : ASTM,JIS,GB,DIN,B187

Contact Now

ASTM B280 aluminum bronze round bar C95400 alloy rods 2m length

Aluminium bronzes are copper alloys, that contain about 5 to 12% of aluminium. In addition, aluminium bronzes also contain nickel, silicon, manganese, and iron. They are found in wrought and cast form. Due to the presence of hard, adherent, protective alumina film, they are stronger than that of brasses or tin bronzes. They have high corrosion resistance, and are golden in color.

Product Description:

  • Item : Bronze Bar
  • Material: C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,C11000,C11300,C11400, C11500,C11600,C12000,C12200,C12300,TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530, C17200,C19200,C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400, C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,etc.
  • Specifications:
  • Diameter: 1-600mm
  • Length: 1m, 2m, 3m, 5.8m, 6m, or as request.

Features Of Bronze Round Bar:

1.High load capacity Good anti-wearing

2.Low coefficients of friction

3.Good heat conductivity

4.High corrosion resistence

5.Long life and maintenance-free

6.No contaminant by oil or grease

Applications:

  • Bearings
  • Pipe fittings
  • Pumps and valve components
  • Fasteners
  • Heat exchangers

Chemical Composition:

Element Content (%)
Cu 85
Fe 4
Al 11

Physical Properties:

Properties Metric Imperial
Density 7.45 g/cm3 0.269 lb/in3
Melting point 1025 - 1040°C 1877 - 1900°F

Mechanical Properties:

Properties Metric Imperial
Hardness, Brinell ( as cast; 3000 kg) 170 170
Hardness, Brinell(TQ50 temper; 3000 kg) 195 195
Hardness, Rockwell B (as cast) 83 83
Hardness, Rockwell B (TQ50 temper) 94 94
Tensile strength, ultimate (as cast) 515 MPa 74700 psi
Tensile strength, ultimate (TQ50 temper) 620 MPa 89900 psi
Tensile strength, yield ( as cast) 205 MPa 29700 psi
Tensile strength, yield(TQ50 temper) 310 MPa 45000 psi
Elongation at break (TQ50 temper, in 50 mm) 8% 8%
Elongation at break (as cast, in 50 mm) 12% 12%
Reduction of area (TQ50 temper) 6% 6%
Reduction of area (as cast) 12% 12%
Creep strength (for 10E-5%/h, at 425°C) 20.0 MPa 2900 psi
Creep strength (for 10E-5%/h, at 370°C) 30.0 MPa 4350 psi
Creep strength (for 10-E5%/h, at 315°C) 51.0 MPa 7400 psi
Creep strength (for 10E-5%/h, at 230°C) 115 MPa 16700 psi
Modulus of Elasticity 110 GPa 16000 ksi
Compressive strength ( as cast) 940 MPa 136000 psi
Compressive strength (TQ50 temper) 1070 MPa 155000 psi
Poisson’s ratio 0.316 0.316
Charpy impact (keyhole, TQ50 temper) 9.00 J 6.64 ft-lb
Charpy impact (keyhole, as cast) 15.0 J 11.1 ft-lb
Izod impact (TQ50 temper) 15.0 J 11.1 ft-lb
Izod impact (as cast) 22.0 J 16.2 ft-lb
Fatigue strength (@# of cycles 1.00e+8 , reverse bending) 240 MPa 34800 psi
Machinability (UNS C36000 (free-cutting brass) = 100%) 60% 60%
Shear modulus 41.0 GPa 5950 ksi

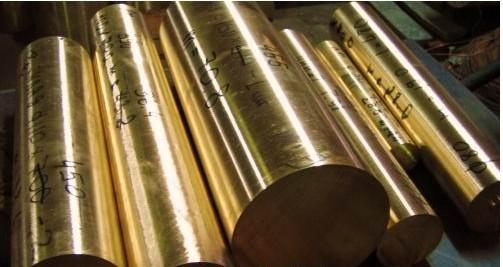

Product Photos:

2m C95400 Alloy Round Bar , ASTM B280 Aluminum Bronze Bar Stock
2m C95400 Alloy Round Bar , ASTM B280 Aluminum Bronze Bar Stock
